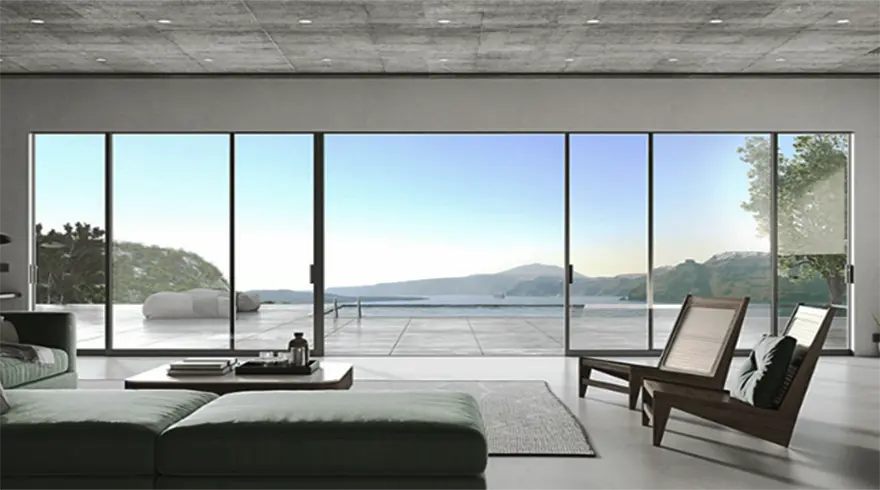

The sliding system SMARTIA M630 PHOS offers a minimal touch in contemporary residences combining minimal design with high thermal performance. Following the “less is more” philosophy, all aluminium profiles can be hidden into the wall providing a total sense of comfort with top functionality and enhanced safety.
Advantages
- ✓ Elegant coziness full of natural light thanks to the system's minimal design and the wide glazing surfaces
- ✓ High energy saving thanks to the exceptional thermal performance
- ✓ Exceptional sound insulation
- ✓ Maximum ease of use and high functionality
- ✓ Ease of access ideal for children, the elders and people with special needs
- ✓ Wide variety of typologies
- ✓ Exceptional quality with certified performance
Generic
WINDOW TYPE
Sliding
Sliding
THERMAL INSULATION
Yes
Yes
EXTERIOR SHAPE
Flat
Flat
SURFACE TREATMENTS
Wood sublimation, Anodizing colors, all powder coating
Wood sublimation, Anodizing colors, all powder coating
Performance
WATER TIGHTNESS
CLASS 7A
CLASS 7A
AIR PERMEABILITY
CLASS 4
CLASS 4
WIND LOAD RESISTANCE
C5
C5
SOUND REDUCTION
42dB
42dB
Features
UW
1,43 W/m2K
1,43 W/m2K
SASH WEIGHT
up to 250 Kg
up to 250 Kg
TYPES OF TYPOLOGY
Horizontal sliding sashes, Meeting stile, Combinations with fixed ligths
Horizontal sliding sashes, Meeting stile, Combinations with fixed ligths
