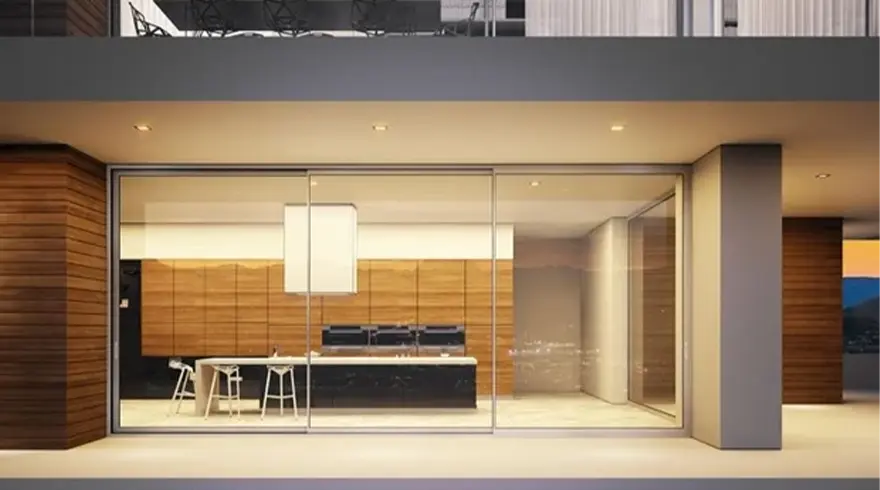

SMARTIA M450 represents the next generation of advanced systems for minimal lift & slide and regular sliding doors. It meets the demanding requirements of contemporary residences for high thermal insulation and modern aesthetics.
Advantages
- ✓ Minimal and innovative design with only 25 mm of visible aluminium face width at the interlocking profile, both for lift & slide and sliding typologies
- ✓ High energy savings thanks to the exceptional energy efficiency
- ✓ Great ease of use and high functionality
- ✓ Easy to clean frame, with invisible water evacuation and less visible depth
- ✓ Wide variety of typologies
- ✓ Exceptional quality with certified performance
- ✓ Easy access thanks to the low threshold, ideal for renovations (version SMARTIA M450 LT).
Generic
WINDOW TYPE
Lift & Sliding, Sliding
Lift & Sliding, Sliding
THERMAL INSULATION
Yes
Yes
EXTERIOR SHAPE
Flat
Flat
Performance
WATER TIGHTNESS
9Α
9Α
AIR PERMEABILITY
4
4
WIND LOAD RESISTANCE
C3
C3
SOUND REDUCTION
40 dB
40 dB
Features
UF
from 1,3 W/m²K
from 1,3 W/m²K
SASH WEIGHT
up to 200 Kg lift & slide, up to 180 Kg sliding
up to 200 Kg lift & slide, up to 180 Kg sliding
TYPES OF TYPOLOGY
SHorizontal sliding sashes, Meeting stile, Combinations with fly-screen, Pocket typologies
SHorizontal sliding sashes, Meeting stile, Combinations with fly-screen, Pocket typologies
